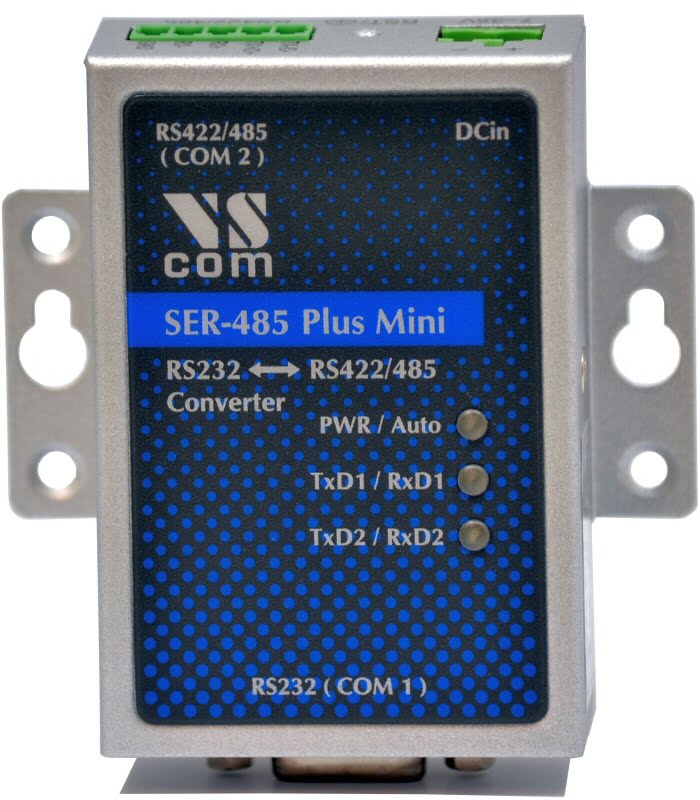

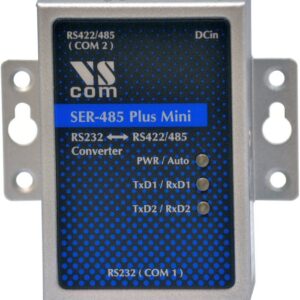

SER-485 Mini ISO

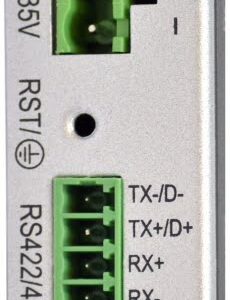

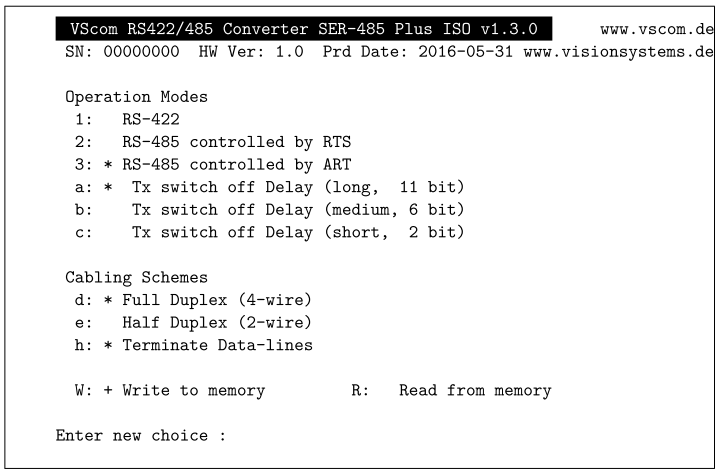

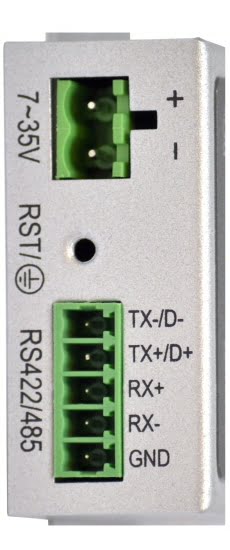

The SER-485 Mini is a small size, smart bidirectional RS232 to RS422/RS485 converter that is fully configurable by software and suitable for industrial environments. The device supports the ARTc (Automatic Receive/Transmit Control) for RS485 and auto baud rate sensing. Whilst automatic line termination exists there is no need for biasing differential lines easing its deployment. Both the RS232 and the RS422/RS485 interfaces are ESD surge protected. RS485/RS422 interface is build as a 5 Pin terminal block. The device is a table, Din-Rail or wall mountable system.
